EZ-KIT Lite for the ADSP-2136x SHARC® Processor Family
ADZS-21479-EZBRD 说明
The SHARC® 21479 EZ-Board™ evaluation board provides developers with a low-cost platform for initial evaluation of the 2147x SHARC processors via an external JTAG emulator or standalone debug agent board.Note:To debug you must have a Debug Agent Board or Emulator. The EZ-Board has an expansion interface that allows for modularity with different EZ-Extender boards.
ADZS-21479-EZBRD 特点
- ADSP-21479: 196-pin BGA package, 16.625 MHz CLKIN oscillator
- Flash Memory: 4 M x 8-bit, Numonyx
- SDRAM Memory: 16Mb x16 bit, Micron MT48LC16M16A2P
- Asynch SRAM: 1M x16 bit, ISSI IS61WV102416BLL-10TLI
- SPI Memory: 16 Mbit
- Analog Audio: AD1939 Codec
- SPDIF: RCA phone jacks
- UART: ADM3202 RS-232 line driver/receiver
- Power Supply: 5V @ 3.6 Amps
- LEDs: 10 LEDs: 1 power (green), 1 board reset (red), and 8 general purpose (amber)
- Push Buttons: (5) push buttons: (1) reset, (2) connected to DAI, (2). IRQ/Flag
- SHARC Expansion Interface II: AMI, Flags/IRQs, DAI, DPI, PWR_IN, 3.3V, GND
- Other Features: Standalone Debug Agent Interface, RTC (Real Time Clock) implementation, Shift Register Interface, MP JTAG IN and OUT Connectors, 0-ohm resistors for DSP current measurement, CE compliant
ADZS-21479-EZBRD 最低配置要求
- Windows® 2000 SP4, Windows XP SP2, Windows Vista™ or Windows 7 Business/ Enterprise/ Ultimate editions
- Intel Pentium® processor (x86 compatible), 1 GHz or faster
- 512 MB RAM and 2 GB available hard disk space
- VisualDSP++ 5.0

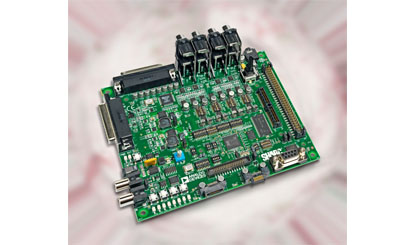

ADZS-21479-EZBRD 实物图
ADZS-21479-EZBRD 应用技术支持与电子电路设计开发资源下载
- ADZS-21479-EZBRD 数据手册DataSheet 下载 .PDF（开发工具使用说明书）
- Analog Devices, Inc. 美国模拟器件公司产品订购手册 .PDF
- SHARC 处理器进阶手册 .PDF
