AD5243EVAL: 256-Position Dual Channel I^2C Compatible Digital Potentiometer

The AD5243 provides a compact 3 mm x 4.9 mm packaged solution for dual 256-position adjustment applications. This device performs the same electronic adjustment function as a 3-terminal mechanical potentiometer or variable resistor.

Available in four different end-to-end resistance values (2.5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ), these low temperature coefficient devices are ideal for high accuracy and stability variable resistance adjustments. The wiper settings are controllable through the I^2C compatible digital interface.

The resistance between the wiper and either end point of the fixed resistor varies linearly with respect to the digital code transferred into the RDAC latch.

Operating from a 2.7 to 5.5 volt power supply and consuming less than 5 uA allows for usage in portable battery operated applications. All parts are guaranteed to operate over the extended automotive temperature range of -40°C to +125°C

AD5243EVAL 特点

• 2-Channel, 256-Position
• End-to-End Resistance 2.5 Ω,
  10 Ω, 50 Ω, 100 Ω
• Compact MSOP-10
  (3 mm x 4.9 mm) Package
• Full Read/Write of Wiper Register
• Power-On Preset to Midscale
• Single Supply +2.7 V to +5.5 V
• Low Temperature
  Coefficient 35 ppm/°C
• Low power, IDD=5 uA
• Wide Operating Temperature
  –40°C to +125°C
• Evaluation Board Available

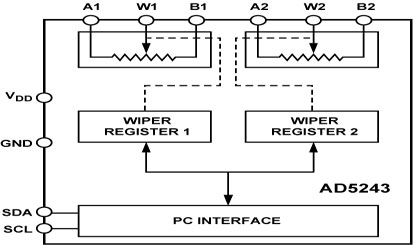

AD5243EVAL 功能框图

AD5243 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
AD5243BRM10	量产	10 ld MSOP	10	汽车级
AD5243BRM10-RL7	量产	10 ld MSOP	10	汽车级
AD5243BRM100	量产	10 ld MSOP	10	汽车级
AD5243BRM100-RL7	量产	10 ld MSOP	10	汽车级
AD5243BRM2.5	量产	10 ld MSOP	10	汽车级
AD5243BRM50	量产	10 ld MSOP	10	汽车级
AD5243BRM50-RL7	量产	10 ld MSOP	10	汽车级
AD5243BRMZ10	量产	10 ld MSOP	10	汽车级
AD5243BRMZ10-RL7	量产	10 ld MSOP	10	汽车级
AD5243BRMZ100	量产	10 ld MSOP	10	汽车级
AD5243BRMZ100-RL7	量产	10 ld MSOP	10	汽车级
AD5243BRMZ2.5	量产	10 ld MSOP	10	汽车级
AD5243BRMZ2.5-RL7	量产	10 ld MSOP	10	汽车级
AD5243BRMZ50	量产	10 ld MSOP	10	汽车级
AD5243BRMZ50-RL7	量产	10 ld MSOP	10	汽车级
AD5243EVAL	量产	评估板	-	工业
