AD5262-EVAL: +15 V or ±5 V, Dual-Channel, SPI Compatible, 256 Position Digital Potentiometer

The AD5260 and AD5262 are 1- and 2-channel, 256 position, SPI interface digitally controlled, variable resistor (VR) devices. These parts operate from either a single +5 V to +15 V supply or a dual ±5 V supply, extending terminal voltage adjustment to these supply voltages. (Most industry digital potentiometers are limited to a 5 V operating range). These devices perform the same electronic adjustment function as a potentiometer or variable resistor while offering solid-state reliability and electronic packaging compactness. These devices are offered in the thin 1.1 mm height TSSOP 14- and 16-lead surface mount packages

AD5262-EVAL 特点

• AD5262 – 2-Channel (Independently Programmable)
• 5 V to 15 V Single-Supply; ±5.5 V Dual-Supply Operation
• Potentiometer Replacement 20 kΩ, 50 kΩ, 200 kΩ
• 256 Positions
• AD5260 – 1-Channel
• Low Temperature Coefficient 35 ppm/°C
• 4-Wire SPI-Compatible Serial Data Input
• Power ON Mid-Scale Preset

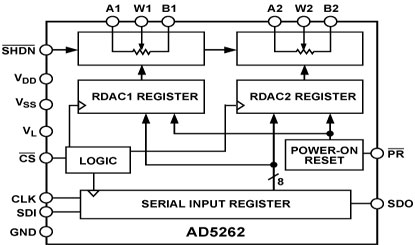

AD5262-EVAL 功能框图

AD5262 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
AD5262-EVAL	量产	评估板	-	待定
AD5262BRU20	量产	16 ld TSSOP	16	工业
AD5262BRU20-REEL7	量产	16 ld TSSOP	16	工业
AD5262BRU200	量产	16 ld TSSOP	16	工业
AD5262BRU200-REEL7	量产	16 ld TSSOP	16	工业
AD5262BRU50	量产	16 ld TSSOP	16	工业
AD5262BRU50-REEL7	量产	16 ld TSSOP	16	工业
AD5262BRUZ20	量产	16 ld TSSOP	16	工业
AD5262BRUZ20-RL7	量产	16 ld TSSOP	16	工业
AD5262BRUZ200	量产	16 ld TSSOP	16	工业
AD5262BRUZ200-RL7	量产	16 ld TSSOP	16	工业
AD5262BRUZ50	量产	16 ld TSSOP	16	工业
AD5262BRUZ50-RL7	量产	16 ld TSSOP	16	工业
