ADD8505-EVAL: 5-Channel, Muxed Input Line Inversion LCD Gamma Buffer
The ADD8504, ADD8505, and ADD8506 are 4-, 5-, and 6-channel LCD gamma reference buffers designed to drive column driver gamma inputs in line inversion panels. Each buffer channel has an A/B input to select between two gamma voltage curves. These buffer channels drive the resistor ladders of LCD column drivers for gamma correction. The ADD8504/ ADD8505/ADD8506 outputs have high slew rates and output drives that increase the stability of the reference ladder resulting in optimal gray scale and visual performance.

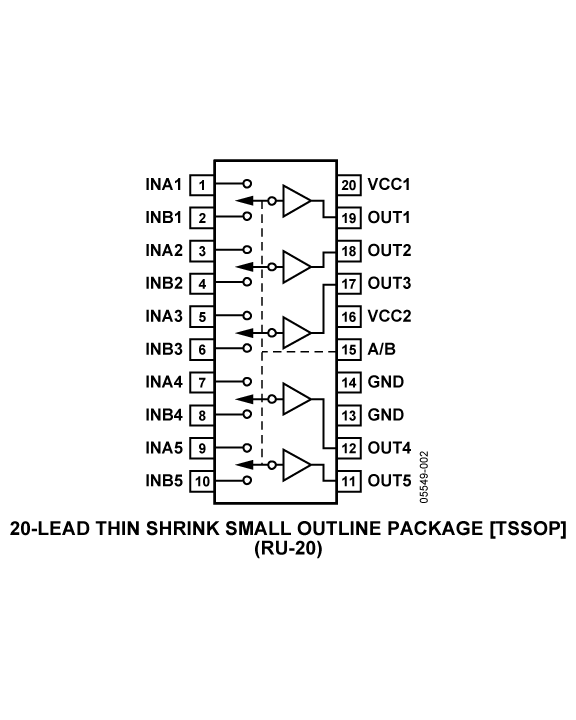

The ADD8504/ADD8505/ADD8506 are specified over the -40°C to +105°C temperature range. They are available, respec-tively, in 16-, 20-, and 24-lead thin shrink small outline (TSSOP), surface-mount, Pb-free packages. The ADD8506 is also offered in a leaded TSSOP.
产品应用领域 Applications
- LCD line inversion gamma references
- Car navigation panels
- Personal media player panels
ADD8505-EVAL 特点
- Single-supply operation: 3.3 V to 6.5 V
- Rail-to-rail input, rail-to-rail output
- High output current: 380 mA
- Low supply current: 3.9 mA
- Stable with 1 nF loads
- Wide temperature range: -40°C to +105°C
- 16-, 20-, and 24-lead, Pb-free, TSSOP packages

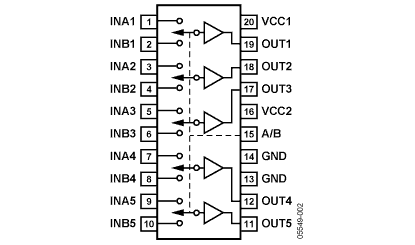

ADD8505-EVAL 功能框图
ADD8505-EVAL 技术指标
| -3dB Bandwidth | n/a | Vcc-Vee Supply (V) | 3.3 to 6.5 |
| Slew Rate | 7V/us | Iq per Amplifier | 0.88mA |
| Vos | 20mV | # OpAmps per Pkg | 5 |
| Ib | 2nA | Operating Temp Range | -40 to +105 |
| Input Noise (nV/rtHz) | n/a | Packages | SOP |
ADD8505 订购指南
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| ADD8505-EVAL | 量产 | 评估板 | 20 | 汽车级 |
| ADD8505WRUZ | 量产 | 20 ld TSSOP | 20 | 汽车级 |
| ADD8505WRUZ-REEL | 量产 | 20 ld TSSOP | 20 | 汽车级 |
| ADD8505WRUZ-REEL7 | 量产 | 20 ld TSSOP | 20 | 汽车级 |
