EZ-KIT Lite Evaluation Kit for ADSP-218x Processor Family

ADZS-2189M-EZLITE 说明

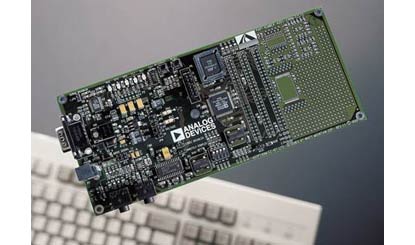

The ADSP-2189M EZ-KIT Lite provides developers with a cost-effective method for initial evaluation of the powerful ADSP-218x DSP family architecture. The ADSP-2189M EZ-KIT Lite includes a stand-alone ADSP-2189M DSP board and fundamental code generation debug software. With this EZ-KIT Lite, users can learn about DSP hardware and software development and evaluate potential applications of the ADSP-218X M family of DSPs. The ADSP-2189M EZ-KIT Lite provides an evaluation suite of the VisualDSP++ development environment with the C compiler, assembler, and linker. All software tools are limited to use with the EZ-KIT Lite product.Demonstration programs shipped with this EZ-KIT Lite system include common signal processing algorithms such as convolution and Fibonacci calculations. Programs that demonstrate the use of the hardware features of the ADSP-2189M are provided including interrupts, overlays, timers and the on-board codec.

ADZS-2189M-EZLITE 特点

• ADSP-2189M DSP
• Supports ADSP-218x DSP family
• RS-232 interface port
• 2Mbit or greater boot protected flash PROM
• Expansion capabilities
• Evaluation suite of VisualDSP++
• Support for 2.5 and 3.3 I/O selectable
• AD 73322 codec
• CE certified

ADZS-2189M-EZLITE 最低系统配置

• Pentium® 166 MHz or greater; Windows® 9x/NT 4.0 and Windows 2000
• Minimum 32 megabytes of PC-AT memory
• One RS-232 compatible serial port

ADZS-2189M-EZLITE 功能框图

ADZS-2189M-EZLITE 应用技术支持与电子电路设计开发资源下载

1. ADZS-2189M-EZLITE 数据手册DataSheet 下载 .PDF（开发工具使用说明书）
2. ADI 模拟器件公司比较器产品选型指南 . PDF
3. Analog Devices, Inc. 美国模拟器件公司产品订购手册 .PDF
4. ADSP-218x DSP 处理器使用手册 .zip (zip, 2439 kB)
5. ADSP-218x DSP Instruction Set Reference 下载 .PDF
6. Using the ADSP-2100 Family Volume 1下载 .zip (zip, 4890 kB)
7. Using the ADSP-2100 Family Volume 2下载 .zip
