EVAL-AD1937EBZ: Four ADCs/Eight DACs with PLL, 192 kHz, 24-Bit Codec
The AD193X family are high performance, single-chip CODECs that provide 4 ADCs with differential input and 8 DACs with either single-ended or differential output using ADI’s patented multibit sigma-delta architecture. An SPI(R) or I^2C(R) port is included, allowing a microcontroller to adjust volume and many other parameters. The AD193X family operates from 3.3 V digital and analog supplies. The AD193X is available in a 48-lead or 64-lead LQFP package.
The AD193X is designed for low EMI. This consideration is apparent in both the system and circuit design architectures. By using the on-board PLL to derive master clock from L/R clock, the AD193X eliminates the need for a separate high frequency master clock. It can also be used with a suppressed bit clock. The D/A and A/D converters are designed using the latest ADI continuous time architectures to further minimize EMI. By using 3.3 V supplies, power consumption is minimized, further reducing emissions.
产品应用领域 Applications
- Automotive audio systems
- Home theater systems
- Set-top boxes
- Digital audio effects processors
EVAL-AD1937EBZ 特点
- PLL generated (32-192 kHz) or direct master clock
- Low EMI design
- 106 dB DAC/ 107 dB ADC Dynamic Range and SNR
- -92 dB THD+N
- Single 3.3 V Supply
- Supports 24-bits and 8 kHz - 192 kHz sample rates
- Tolerance for 5 V logic inputs
- Stereo and TDM Modes up to 16 channel in/out
- Differential ADC input
- Single-ended DAC output for simple implementation
- Log volume control with "auto-ramp" function and mute
- I^2C Control Interface

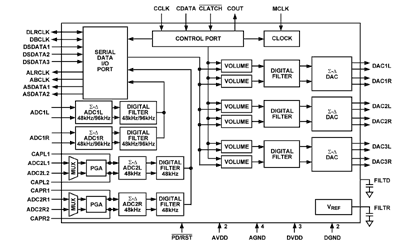

EVAL-AD1937EBZ 功能框图
AD1937 芯片订购指南
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| AD1937WBSTZ | 量产 | 64 ld LQFP (10x10mm) | 64 | 工业 |
| AD1937WBSTZ-RL | 量产 | 64 ld LQFP (10x10mm) | 64 | 工业 |
| EVAL-AD1937EBZ | 量产 | 评估板 | - | 工业 |
