EVAL-AD8003-3CPEZ: 运算放大器
The AD8003 is a triple ultrahigh speed current feedback amplifier. Using ADI’s proprietary eXtra Fast Complementary Bipolar (XFCB) process, the AD8003 achieves a bandwidth of 1.5 GHz and a slew rate of 4300 V/us. Additionally, the amplifier provides excellent dc precision with an input bias current of 50 uA maximum and a dc input voltage of 0.7 mV.
The AD8003 has excellent video specifications with a frequency response that remains flat out to 190 MHz and 0.1% settling within 12 ns to ensure that even the most demanding video systems maintain excellent fidelity. For applications that use NTSC video, as well as high speed video, the amplifier provides a differential gain of 0.05% and a differential gain of 0.01°.
The AD8003 amplifier is available in a compact 4 mm × 4 mm, 24-lead LFCSP_VQ. The AD8003 is rated to work over the industrial temperature range of -40°C to +85°C.
EVAL-AD8003-3CPEZ 特点
- High speed 1650 MHz (G = +1) 730 MHz (G = +2, Vo = 2 V p-p) 4300 V/us (G = +2, 4 V step) Settling time 12 ns to 0.1%, 2 V step
- Excellent for QXGA resolution video Gain flatness 0.1 dB to 190 MHz 0.05% differential gain error, RL = 150 Ohm 0.01° differential phase error, RL = 150 Ohm
- Low voltage offset: 0.7 mV (typical)
- Low input bias current: 7 uA (typical)
- Low noise: 1.8 nV/√Hz
- Low distortion over wide bandwidth:SFDR －73 dBc @ 20 MHz
- High output drive: 100 mA output load drive
- Supply operation: +5 V to ±5 V voltage supply
- Supply current: 9.5 mA/amplifier

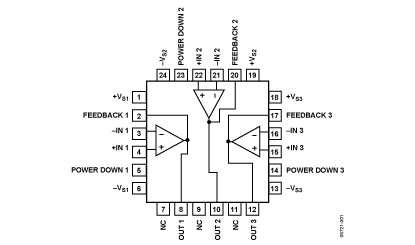

EVAL-AD8003-3CPEZ 功能框图
EVAL-AD8003-3CPEZ 技术指标
| -3dB Bandwidth | 1.65GHz | Vcc-Vee Supply (V) | 4.5 to 10 |
| Slew Rate | 3800V/us | Iq per Amplifier | 10.2mA |
| Vos | 700uV | # OpAmps per Pkg | 3 |
| Ib | 7uA | Operating Temp Range | -40 to +85 |
| Input Noise (nV/rtHz) | 1.8nV/rtHz | Packages | CSP |
AD8003 订购指南
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| AD8003ACPZ-R2 | 量产 | 24 ld LFCSP (4x4mm w/2.10mm EP) | 24 | 工业 |
| AD8003ACPZ-REEL | 量产 | 24 ld LFCSP (4x4mm w/2.10mm EP) | 24 | 工业 |
| AD8003ACPZ-REEL7 | 量产 | 24 ld LFCSP (4x4mm w/2.10mm EP) | 24 | 工业 |
| EVAL-AD8003-3CPEZ | 量产 | 评估板 | 商业 |
