EVAL-ADCMP566BCPZ 比较器
The ADCMP566 is an ultrafast voltage comparator fabricated on Analog Devices’ proprietary XFCB process. The device features 250 ps propagation delay with less than 35 ps overdrive dispersion. Overdrive dispersion, a particularly important characteristic of high speed comparators, is a measure of the difference in propagation delay under differing overdrive conditions.
A fast, high precision differential input stage permits consistent propagation delay with a wide variety of signals in the common-mode range from -2.0 V to +3.0 V. Outputs are complementary digital signals fully compatible with ECL 10 K and 10 KH logic families. The outputs provide sufficient drive current to directly drive transmission lines terminated in 50 Ohm to -2 V. A latch input is included, which permits tracking, track-and-hold, or sample-and-hold modes of operation.
The ADCMP566 is available in a 32-lead LFCSP package
EVAL-ADCMP566BCPZ 特点
- 250 ps Propagation Delay Input to Output
- 50 ps Propagation Delay Dispersion
- Differential ECL Compatible Outputs
- Differential Latch Control
- Robust Input Protection
- Input Common-mode Range -2.0 V to +3.0 V
- Input Differential Range ±5 V
- ESD Protection >3 kV HBM, >200 V MM
- Power Supply Sensitivity > 65 dB
- 200 ps Minimum Pulsewidth
- 5 GHz Equivalent Input Rise
- Time Bandwidth
- Typical Output Rise/Fall of 165 ps
EVAL-ADCMP566BCPZ 功能框图

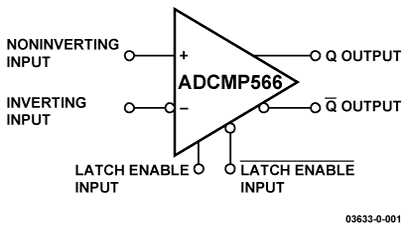

Functional Block Diagram for ADCMP566
EVAL-ADCMP566BCPZ 技术指标
| Logic Output | ECL | Min Pulse Width | 200ps |
| # Per Pkg | 2 | Package | 32-Lead LFCSP |
| Prop Delay (ns)typ | 0.25ns | Output Rise/Fall Time | 165 ps |
| Voltage Supply (V) | 5, -5.2 | Latch Enable Pin | X |
| Supply Current | 83mA |
ADCMP566 订购指南
| 产品型号 | 产品状态 | 封装 | 温度范围 |
|---|---|---|---|
| ADCMP566BCP | 量产 | 32 ld LFCSP (5x5mm CP-32-2) | 工业 |
| ADCMP566BCPZ | 量产 | 32 ld LFCSP (5x5mm CP-32-2) | 工业 |
| EVAL-ADCMP566BCPZ | 量产 | 评估板 | 工业 |
