REF01 +10V Precision Voltage Reference

REF01: +10V Precision Voltage Reference

The REF-01 precision voltage reference provides a stable +10V output which can be adjusted over a ±3% range with minimal effect on temperature stability. Single-supply operation over an input voltage range of 12V to 40V, low current drain of 1mA, and excellent temperature stability are achieved with an improved bandgap design. Low cost, low-noise, and low-power make the REF-01 an excellent choice whenever a stable voltage reference is required. Applications include D/A and A/D converters, portable instrumentation, and digital voltmeters. Full military temperature range devices with screening to MIL-STD-883 are available.

REF01 特点

10 V Output, ±0.3% Max
Adjustment Range, ±3% Min
Excellent Temperature Stability, 8.5 ppm/°C Max
Low Noise, 30 uV p-p Max
Low Supply Current 1.4 mA Max
Wide Input Voltage Range, 12 V to 40 V
High Load Driving Capability, 10 mA
No External Components
Short Circuit Proof

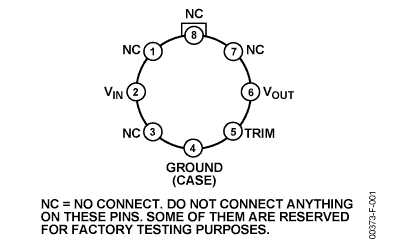

REF01 功能框图

REF01 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
5962-8958101PA	量产	CERDIP GLASS SEAL	8	军用
REF01AJ/883C	量产	ROUND HEADER/METAL CAN	8	军用
REF01CJ	量产	ROUND HEADER/METAL CAN	8	商业
REF01CP	量产	8 ld PDIP	8	商业
REF01CPZ	量产	8 ld PDIP	8	商业
REF01CS	量产	8 ld SOIC	8	商业
REF01CS-REEL	量产	8 ld SOIC	8	商业
REF01CS-REEL7	量产	8 ld SOIC	8	商业
REF01CSZ	量产	8 ld SOIC	8	商业
REF01CSZ-REEL	量产	8 ld SOIC	8	商业
REF01CSZ-REEL7	量产	8 ld SOIC	8	商业
REF01EZ	量产	CERDIP GLASS SEAL	8	工业
REF01HP	量产	8 ld PDIP	8	工业
REF01HPZ	量产	8 ld PDIP	8	工业
REF01HSZ-REEL	量产	8 ld SOIC	8	工业
REF01HZ	量产	CERDIP GLASS SEAL	8	工业
